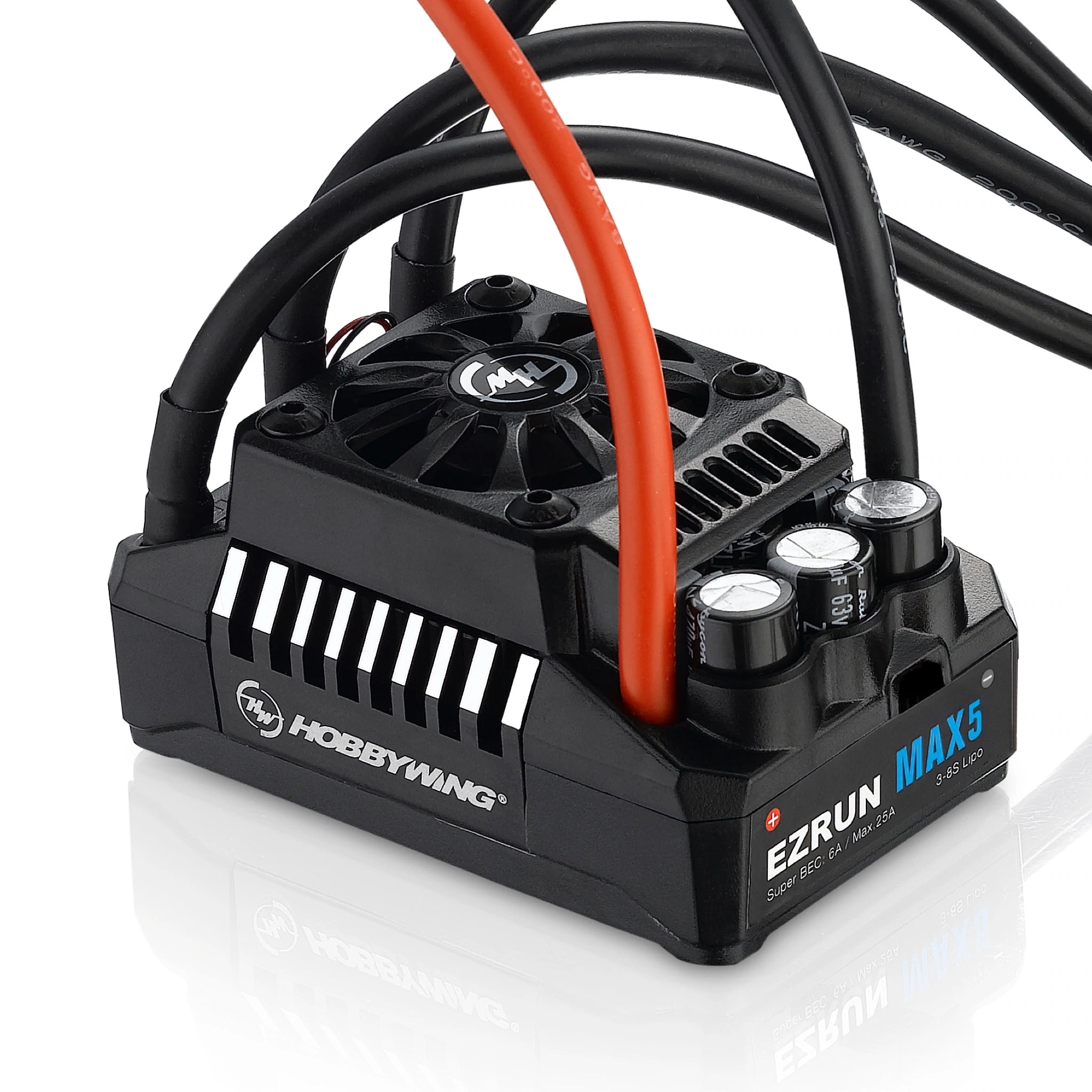

EZRUN MAX5 ESC (3-8S)
- Product SKU: HWI30104000
- Category: Electronics, ESC
EZRUN MAX5 ESC (3-8S)
30104000
Bottomline
-
Compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).
-
Fully waterproof design for all weather conditions.
-
Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a cont. /peak current of 6A/25A for easily driving big torque servos and high voltage servos.
-
A highly reliable electronic switch avoids troubles that may happen to traditional mechanical switches due to dirt, water, dash and etc.
-
The built-in spark-proof circuit effectively protects not the only battery and ESC connectors from damage but also users from physical injury (to hands) caused by strong electrical sparks
-
produced at the battery and ESC connecting moment.
-
Separate programming port to easily connect the LED program card or the LCD program box to the ESC. (purchase separately)
-
Proportional brake with 9 levels of brake amount/maximum brake force and 9 levels of drag brake force.
-
5 levels of acceleration /punch from soft to aggressive for different vehicles, tires, and tracks.
-
Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
-
Capacitor Protection(Only MAX5)： Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
-
Single-button ESC programming and factory reset.
-
Advanced programming via portable LED program card or multifunction LCD program box. or Wireless programming device (purchase separately)
-
Firmware upgrade via HOBBYWING multifunction LCD program box or Wireless programmer (item sold separately).
