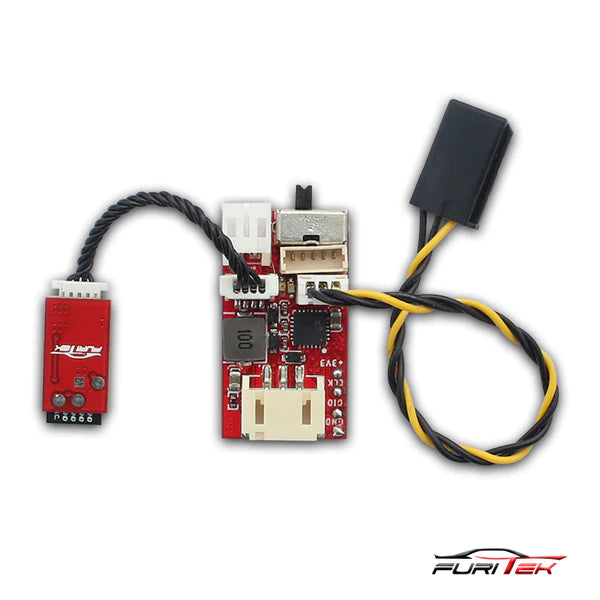

Lizard Pro 30A/50A w/Bluetooth
- Product SKU: FTK-FUR-2073
- Category: Electronics, ESC, SCX24 Driveline Parts, SCX24 Hop-up Parts, SCX24 Parts
- Order within
COMBO OF FURITEK LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL SCX24 WITH BLUETOOTH
FUR-2073
*** Furitek Esc is not compatible with HRZ00015 Board ***
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX
⚠️⚠️⚠️ WARNING ⚠️⚠️⚠️
3s only works best with 2204 1400kv motors and 050 Brushed Motor
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
- Constant current: 30A
- Burst current: 50A
- Build-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
Note: Furitek ESC only support: Komodo 2204 1400kv, Micro Komodo 3450kv, Mini Komodo 2000kv. Don't run motors with high KV like 4100 on 3S
What's included in the package?
1. Lizard Pro Esc x 1pc
2. Furitek Bluetooth x 1pc
3. Power Cable x 1pc
4. Heat Shrinkable Tube x 1 pc
5. Servo to Jst Receiver x 1 pc
