ADS-15M V2 Servo (Red)
- Product SKU: ARAM1025
- Category: Big Rock Hop-ups, Big Rock Parts, Big Rock Steering, Electronics, Felony Hop-ups, Felony Parts, Felony Steering, Granite Hop-ups, Granite Parts, Granite Steering, Infraction Hop-ups, Infraction Parts, Infraction Steering, Kraton Hop-ups, Kraton Parts, Kraton Steering, Limitless Hop-ups, Limitless Parts, Limitless Steering, Mojave Hop-ups, Mojave Parts, Mojave Steering, Notorious Hop-ups, Notorious Parts, Notorious Steering, Outcast Hop-ups, Outcast Parts, Outcast Steering, Senton Hop-ups, Senton Parts, Senton Steering, Servos, Talion Hop-ups, Talion Parts, Talion Steering, Typhon Hop-ups, Typhon Parts, Typhon Steering, Vorteks Hop-ups, Vorteks Parts, Vorteks Steering

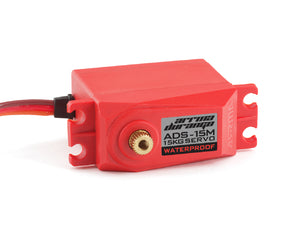

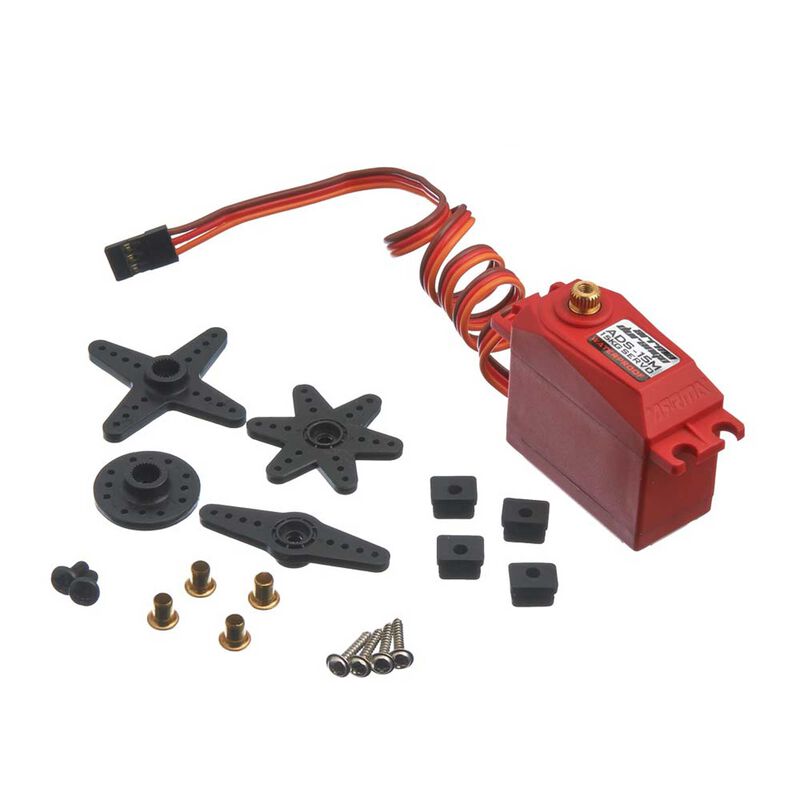

ADS-15M V2 15KG WATERPROOF SERVO (RED)
#AR390139
OVERVIEW:
The ADS-15M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Specification:
Case – Red, Water-proof & dust-proof
Bearing – Dual ball bearing
Connector – ‘Futaba style’ 3 pin connector
Gears – Metal
Spline – 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size
Wire length: 300mm
Torque – ADS-15M: 15kg-cm (208oz-inch) at 7.2V, 14kg-cm (195oz-in) at 6.0V
Speed – 0.14 sec/60 deg at 7.2V, 0.16 sec/60 deg at 6.0V
Signal – Analogue
