Mega Brushed 2S ESC
- Product SKU: ARA390288
- Category: Electronics, ESC
- Order within

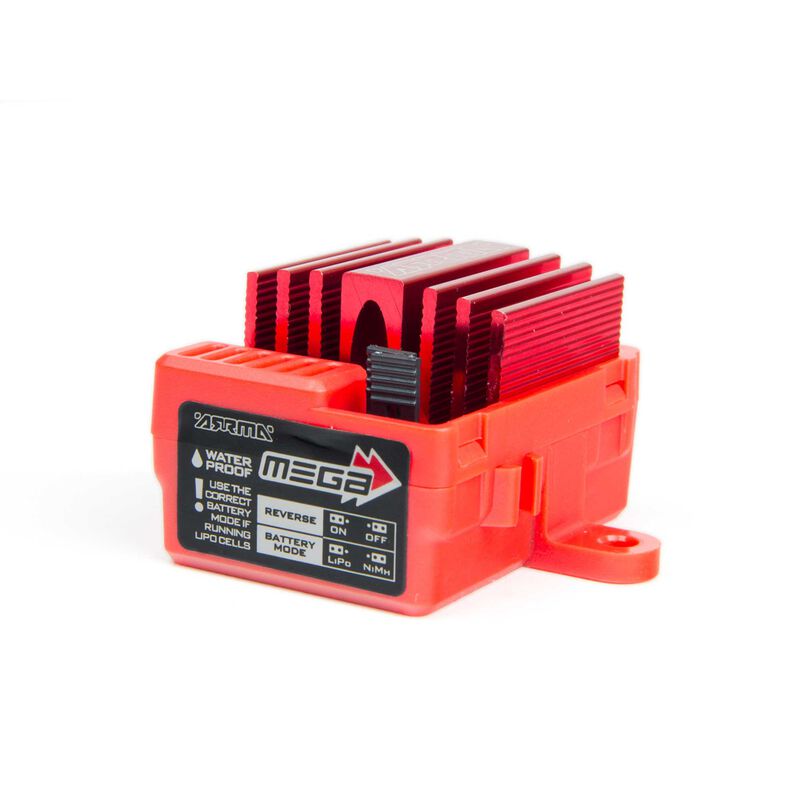

MEGA BRUSHED 2S ESC
#ARA390288
OVERVIEW:
This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.
FEATURES:
Fitted with reliable IC3 connector - Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions - Cool-looking integrated red anodized heatsink for increased heat dissipation - Durable motor and battery connection cables for safe and reliable power transfer - Waterproof power switch - Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit - Etched 'ARRMA' livery for cool looks and quality assurance
|
Battery usage |
7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo |
|
Low Voltage Cut-Off (LVC) |
3.2V per cell |
|
Thermal Protection Temperature |
95°C / 203°F |
|
BEC Voltage |
5V |
|
BEC Current |
2A |
|
ESC Length |
47mm / 1.85" |
|
ESC Height |
21mm / 0.83" |
|
ESC Width |
34mm / 1.34" |
|
ESC Weight |
70g / 2.47oz |
|
Receiver Wire Length |
160mm / 6.3" |
|
Battery Wire Length |
90mm / 3.54" |
INCLUDES:
1 x ARRMA MEGA Brushed ESC
