Steel Pinion/Spur (18T/56T/32P)
- Product SKU: HRASTE256
- Category: 32P Pinions, 32P Spur, Bandit Driveline, Bandit Options, Gears, Rustler Driveline, Rustler Hopup, Slash Driveline, Slash Hopup, Slash Parts, Stampede Driveline, Stampede Hopups, Stampede Parts
- Order within

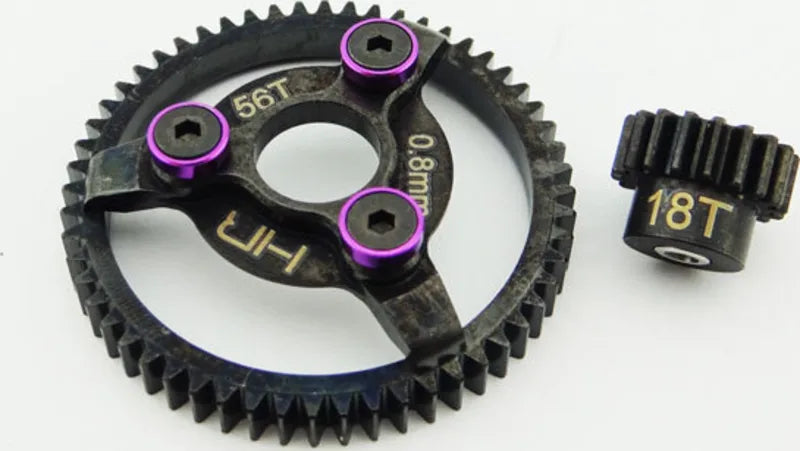

Steel Pinion and Spur Gear Set (18t/56t 32p)(Purple) - TRA
STE256
Hot Racing light weight hardened steel 18T/56T 32 pitch pinion and spur gear set for the TRA Bandit, Rustler, 2WD Slash, and 2WD Stampede
FEATURES:
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
- Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
- Black oxide coated gear for durability and corrosion resistance
- Purple anodized countersunk aluminum washers
- High strength hardware
YOU WILL RECEIVE:
- One (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
- One (1) 56 tooth 32 pitch (0.8 Mod) spur gear
- Three (3) mounting screws
- Three (3) purple anodized countersunk washers
- One (1) pinion adapter sleeve
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)
SPECIFICATIONS:
- Number of Teeth: 18T/56T
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: ~5mm
COMMENTS:
- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
